SA series silencer
-

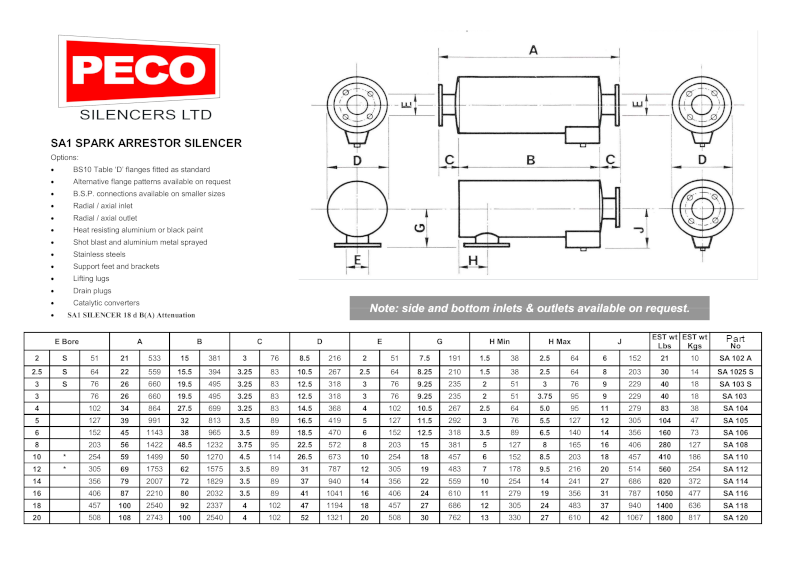

SA1 Spark Arrestor silencer
-
18 dB(A) Attenuation
-
SA2 Spark Arrestor silencer
-
24 dB(A) Attenuation
Reactive Spark Arrestor Silencer
The SA spark arrestor design is also an effective ‘industrial grade’ silencer suitable for most applications. The silencers are generally used by operators both onshore and offshore as well as for marine installations.
The SA range of spark arrestor silencers are based on a two chamber three stage cyclonic/centrifugal design giving optimum spark and attenuation. Both models incorporate a double skinned case construction in the first chamber with preformed end plates for minimum internal resonance. Both models are fitted with a collector box and clean out hand holes. Suitable for use in internal combustion engine exhausts in areas of high fire risk. The silencers can be fitted vertically or horizontally and can be positioned anywhere in the exhaust run.
The SA spark arrestor silencer range are of fully welded design, constructed in carbon steel, finished with one coat heat resistant black paint to ensure a long service life. All units are fitted with drain points to remove exhaust condensate.
Options
-
BS10 Table ‘D’ flanges
-
Alternative flanges available
-
B.S.P. connections available
-
Radial/axial inlet
-
Radial axial outlet
-
Material to BS15 mild steel
-
Finish one coat heat resistant black paint
-
Shot blast and aluminium metal spray
-
Stainless steel
-
Lifting lugs
-
Brackets
-
Support feet
